Hydrants Valves

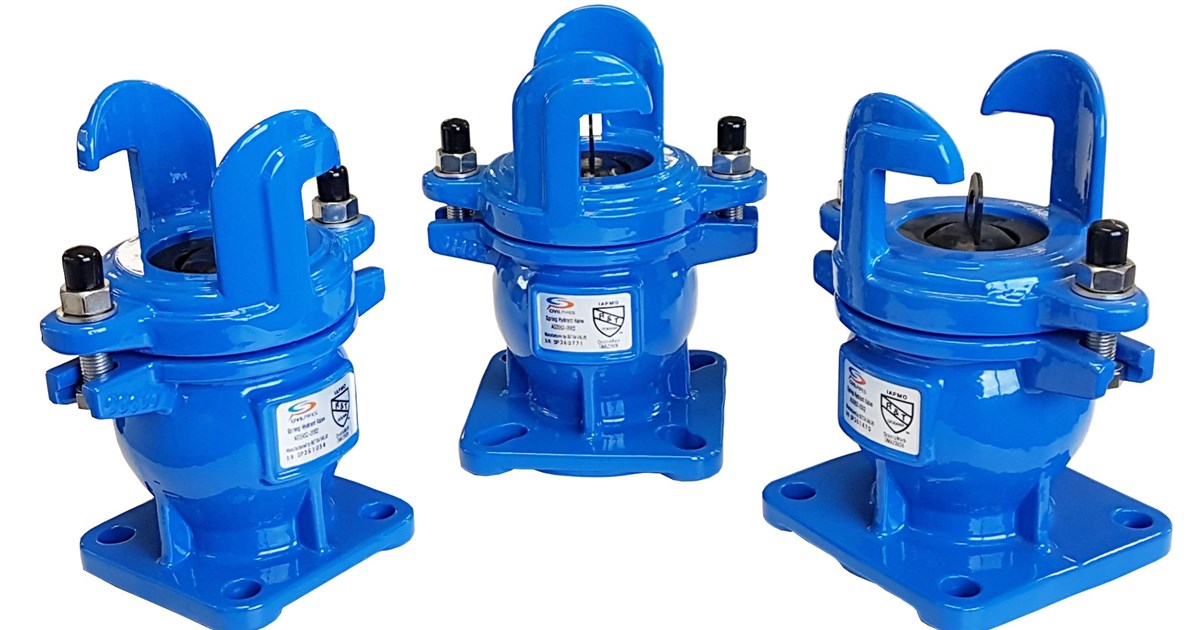

Spring Hydrants
Spring Hydrant valves comply with AS 3952 and are suitable for use in potable water and non-potable systems. The valve is operated by means of a standpipe attachment for fire fighting purposes, as well as pipeline flushing and scouring.
Standard |
AS 3952 |
|---|---|
Size Range |
DN 80, DN 100 |
Types |
Standard, Swab |
Pressures |
PN16 |
Temperature |
Max 60 deg C,
Max 40 deg C for potable water systems to AS 4020 |
End connections |
Flange (AS 4087 Fig B5 PN16) |
Options |
Flange with slotted drilling to suit DN80 – 100 |
Features
- High strength ductile iron body and yoke for impact resistance
- Corrosion Resistant materials and coatings
- Light weight design for easy installation
- Swab style with removable internal components allows access for pipeline scouring
- Dust cover fitted to protect dome and seal
