Accessories
Pipeline Detection
We supply of range of detection products designed to assist in the identification of buried pipelines.

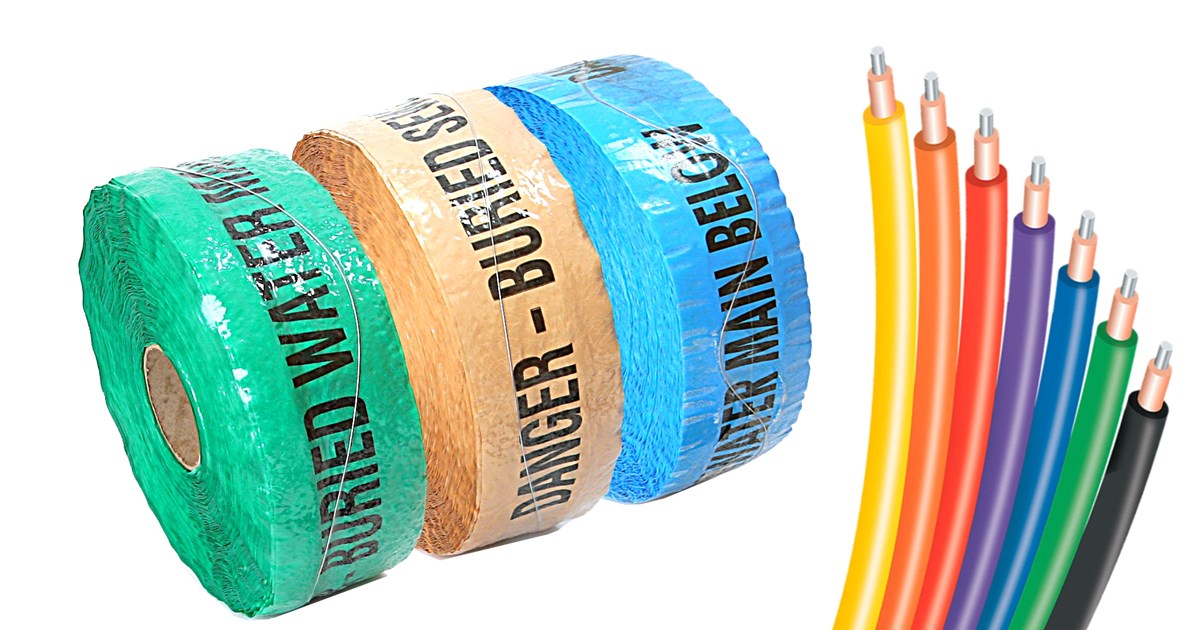

MARKER TAPES |
DECTECTABLE MARKER TAPE - AS/NZS 2648.1 & 4275.0
Below ground applications 316SS tracer wire laminated between 2 layers of polyethylene Std roll - 100mm wide x 250m Coloured coded and labelled to suit application (Non-detectable tapes are available on request) . |
|---|---|
TRACER WIRES |
COPPER TRACER WIRE
Below Ground applications including HDD and pipe bursting Copper tracer - gauge options: 1mm, 1.6mm, 2mm, 2.5mm dia Spool size 175m or 760m HDPE colour coded coating to suit application (SS tracer wire is also available on request) |
Corrosion Protection
Many modern metal pipeline products are manufactured with corrosion resistant coatings and as such require no additional protection for normal conditions.
For exposed metal pipes and fittings, CIVILPIPES offer a range of products that enhances the pipelines resistance to corrosion.
The local authority will determine the appropriate level of corrosion protection required for the ground conditions and the materials in use.

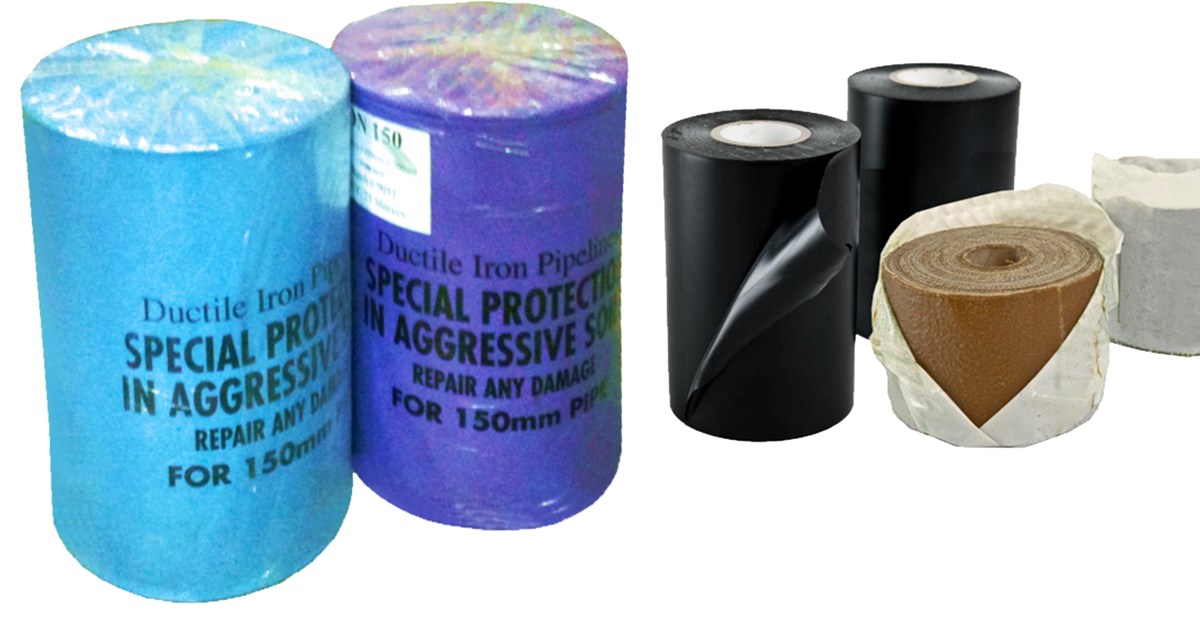

PIPE SLEEVING |
AS 3680 POLYETHYLENE SLEEVING for ductile iron pipes
Corrosion protection for aggressive soil conditions DN 80 - 750 Colour/application options: Potable water (Blue), Recycled water (Purple), Sewer (Cream) . |
|---|---|
PETROLEUM TAPES |
PIPELINE CORROSION PROTECTION SYSTEM
Protection of metal pipes, joints, fittings and components above and below ground. Synthetic fabric impregnated with petroleum compounds. Options: Primer, mastic (surface preparation) Petroleum tape (corrosion protection) Outerwrap PVC self adhesive (external protection) . |
FUSION COATING REPAIR KIT |
JOTUN JOTACOTE 605 epoxy coating
Repairs to fusion bonded epoxy coatings 2 Part epoxy paint system Colours - Valve Blue (other colours on request) Options: 200mL Repair kit (0.65 sq.m at 300um WFT) 5L Kit (16.5 sq.m coverage at 300um WFT) |

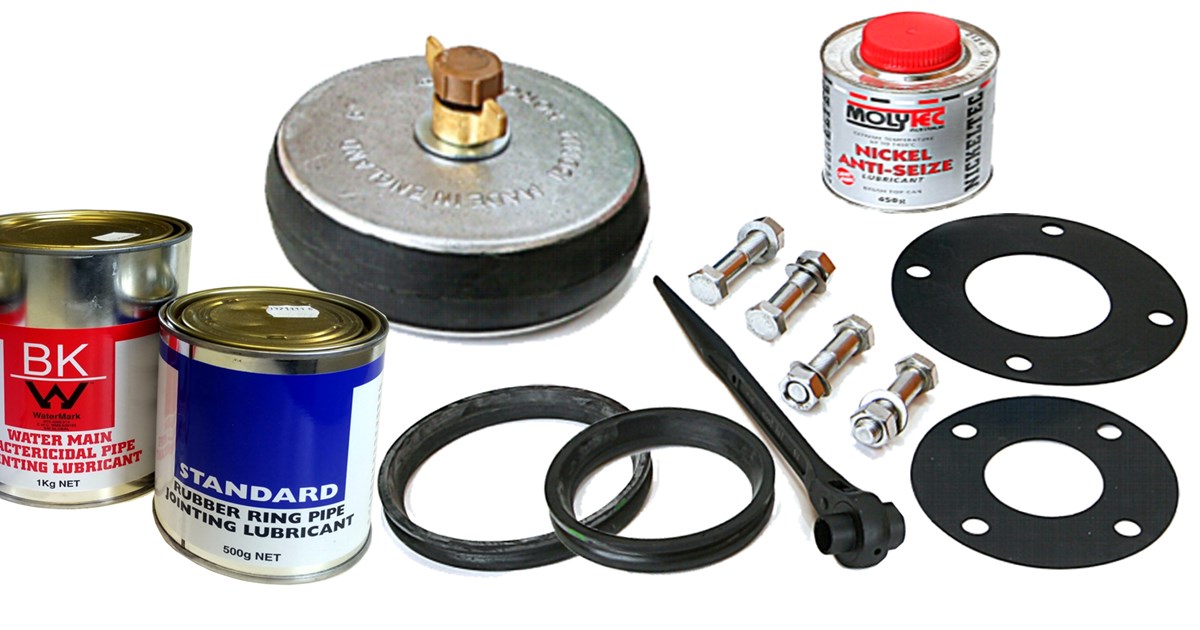

Jointing & Installation
CIVILPIPES supply an extensive range of products to aid in the jointing and installation of pipes and components.
For further details regarding any of the listed products or any other products, contact our experienced technical staff for assistance.
LUBRICANTS |
Pipe jointing lubricants
Anti-Seize thread lubricants . |
|---|---|
SEALS |
Rubber rings to suit PVC and DI pipe sockets
EPDM and Fibre flange gaskets . |
FASTENERS |
Galvanised bolts, studs, nuts and washers Gr 4.6 & Gr 8.8
Stainless steel bolts, studs, nuts & washers Gr 316 . |
TOOLS |
Ratchet spanners
Rollnut wrenches Manhole lifters . |
ADHESIVES |
Megapoxy - Gap filling epoxy adhesive
Thread locking adhesive . |
TESTING |
Test plugs
Pipe swabs |
