Water Services

CIVILPIPES supply an extensive range of water service products from mains to meter, suitable for domestic water, recycled water, as well as commercial and industrial connections.

All products comply with the requirements of relevant nation codes and Australian standards; however, it is important to note that each local authority produce guidelines that determines the component configuration for service connections.

Contact our technical staff if you are seeking advice regarding product selection.

Download Catalogue
Tapping Bands

Tapping Bands

Standards

AS/NZS 4793

Size Range

DN 40 - 300 (4N Noryl)
DN 40 - 600 (Gunmetal)

Pressure

PN16

Types

4N Noryl, Gunmetal

Outlet range

20-50mm - F-BSP

Application

Type F: Flexible Plastic pipes
Type R: Rigid metal and AC pipes

Technical Documents

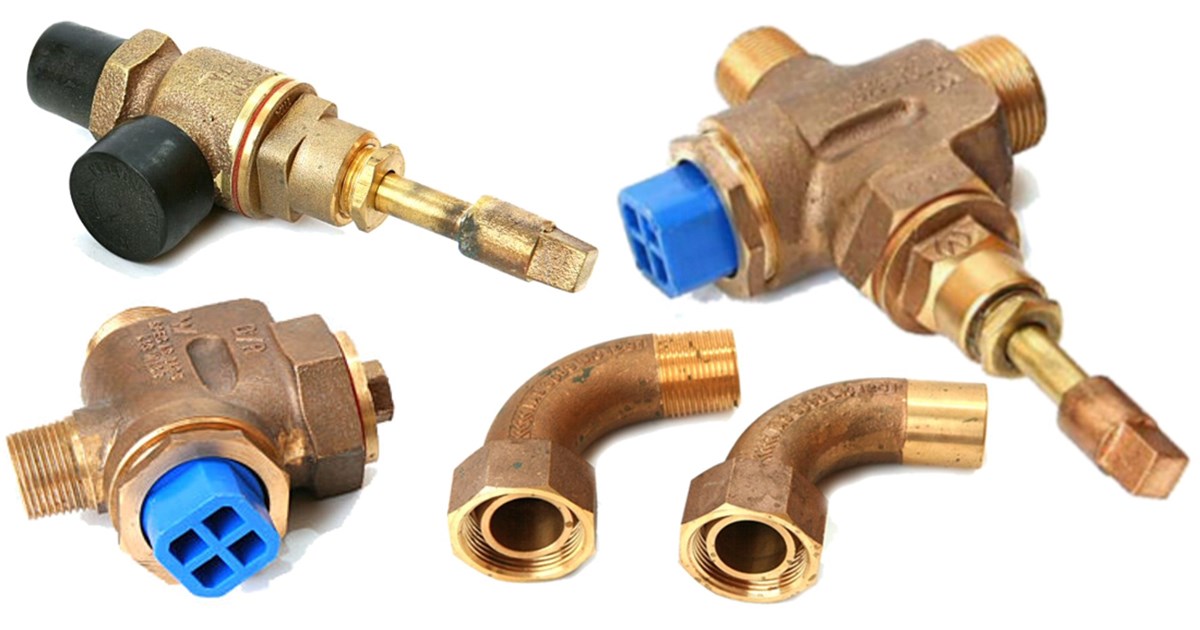

Ferrule Cocks and Bends

Ferrule Cocks and Bends

Standards

AS/NZS 3718, AS 3496 (Ferrule Cocks)
AS 3688 (Ferrule Bends)

Size Range

DN 20 - 50

Pressure

PN16

Material

DR Brass

Types

Standard Ferrule Cocks
TPFNR Ferrule Cocks with Bonnet Assembly
TPFNR Ferrule Cocks Capped
Ferrule Bends

Technical Documents

Service Valves

Service Valves

CIVILPIPES supply a range of approved water service valves for isolating domestic water & recycled water services, as well as commercial and industrial service connections.

The relevant local authority will specify the mains to meter configuration and service valves to be installed.

Ball Valves

Standard: AS 4796
Size Range: DN 20 - 50
Pressure: PN25
Max Temp: 150 deg C
Material: DR Brass
Types: Inline, Right-Angle
Options: SS Body for special applications
.

Gate Valves

Standard: AS 1628
Size Range: DN 15 - 80
Pressure: PN25
Max Temp: 180 deg C
Material: DR Brass
Handle Options: DI Handwheel, DR Brass T-Handle
.

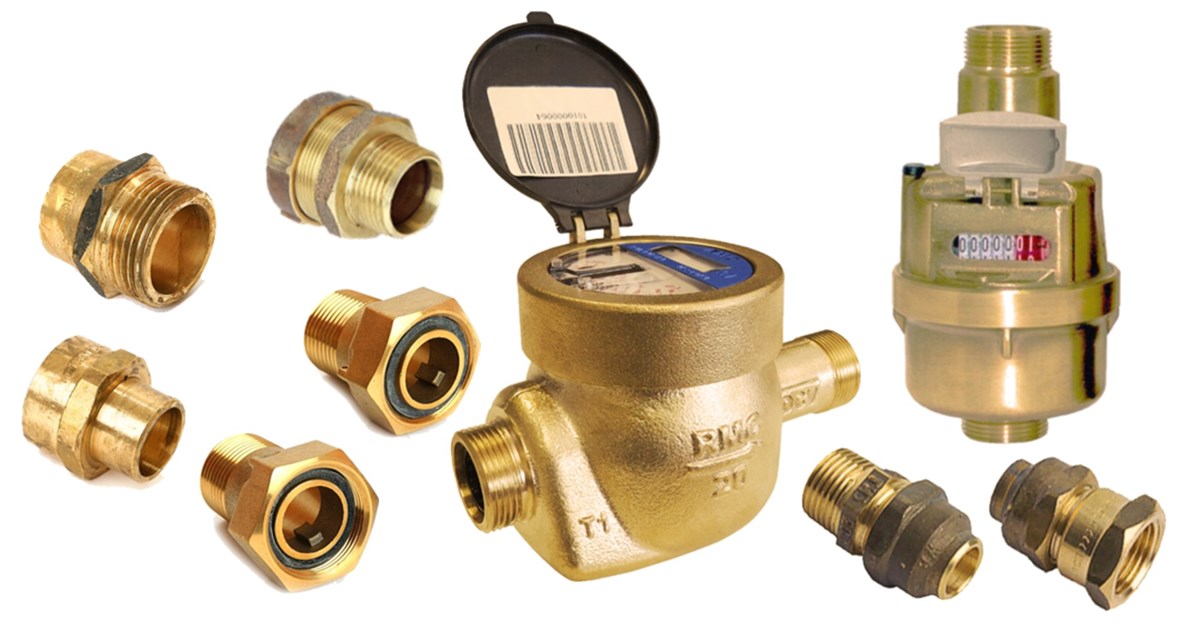

Meters & Accessories

Meters & Accessories

Domestic Meters

Standard: AS/NZS 3565.1, NMI R49-1
Size Range: DN 15 - 50
Pressure: PN14 - 16
Max Temp: 50 deg C
.

Woltman Meters

Standard: MNI R49-1
Size Range: DN 50 - 300
Pressure: PN16
Max Temp: 50 deg C
.

Connectors

Standards: AS 3688
Size Range: DN 15 - 50
Materials: DR Brass
Types: Water Services Connectors (BSP, Cu, Pe)
Meter Connectors (Tailsm Unions, Flanges)
.

Meter Boxes

Cast Iron & Poly Boxes in various sizes
.

Technical Documents
