PVC Pressure

CIVILPIPES offers a wide range of PVC pressure pipes and fittings compliant with water industry standards.

PVC-U pipes have been used in the water industry for many years because of the high strength to weight ratio; corrosion resistance; chemical resistance and ease of handling and installation.

PVC-M pipes have additional Impact Modifiers that produces a more predictable structure that enhances the materials toughness, ductility and resistance to cracking.

PVC-O pipes are manufactured using an advanced process of extrusion followed by a process of bi-axial expansion that results in the molecular orientation of the pipe structure. This produces a product with greatly enhanced physical attributes such as impact resistance, higher ductility, high fatigue resistance and a larger bore with improved flow characteristics.

Pipes are available in Series 1 diameters (ISO compatible) and Series 2 diameters (DI compatible); and can be produced in a range of colours to suit application requirements.



Download Catalogue

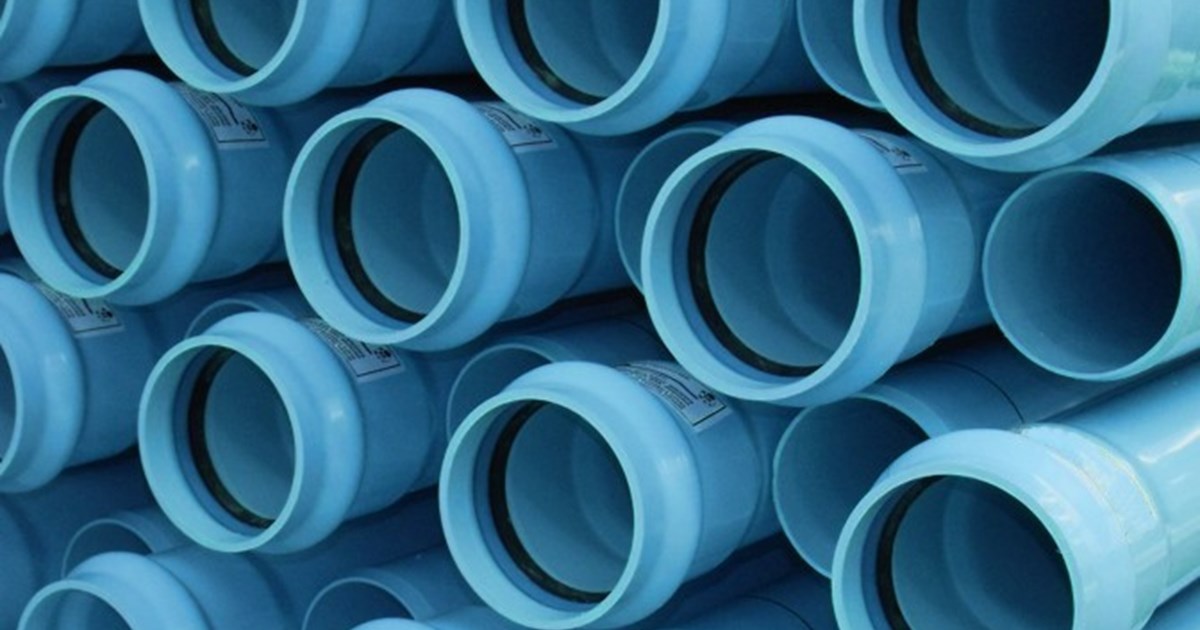

PVC-O Pressure Pipe S2

PVC-O Pressure Pipe S2

This pressure pipe is manufactured to Series 2 diameters and features high impact resistance with exceptional strength, ductility and corrosion resistance.

Suitable for potable water, non-potable water, recycled water and pressure sewer systems

Standard

AS/NZS 4441

Size range

DN 100 - 300

Material

PVC-O - Class 450 (MRS 45MPa)
PVC-O - Class 500 (MRS 50MPa)

Pressures

PN12.5 & PN16

Lengths

6m Spigot-Socket

Jointing

Rubber Ring Joint

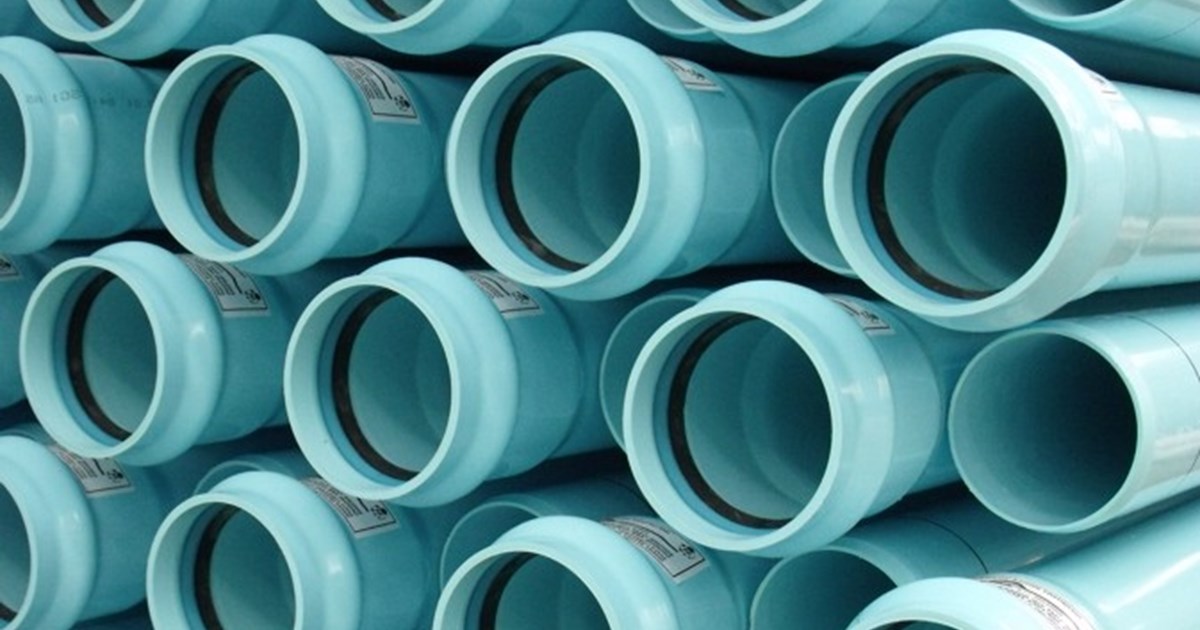

PVC-M Pressure Pipe S2

PVC-M Pressure Pipe S2

This pressure pipe is manufactured to Series 2 diameters and features high impact resistance with high toughness, ductility and corrosion resistance.

Suitable for potable water, non-potable water, recycled water and pressure sewer systems

Standard

AS/NZS 4765

Size range

DN 100 - 450

Material

PVC-M (MRS 24.5MPa)

Pressures

PN12, PN16, PN18 & PN20

Temp Range

0 to 50 deg C

Lengths

6m Spigot-Socket

Jointing

Rubber Ring Joint

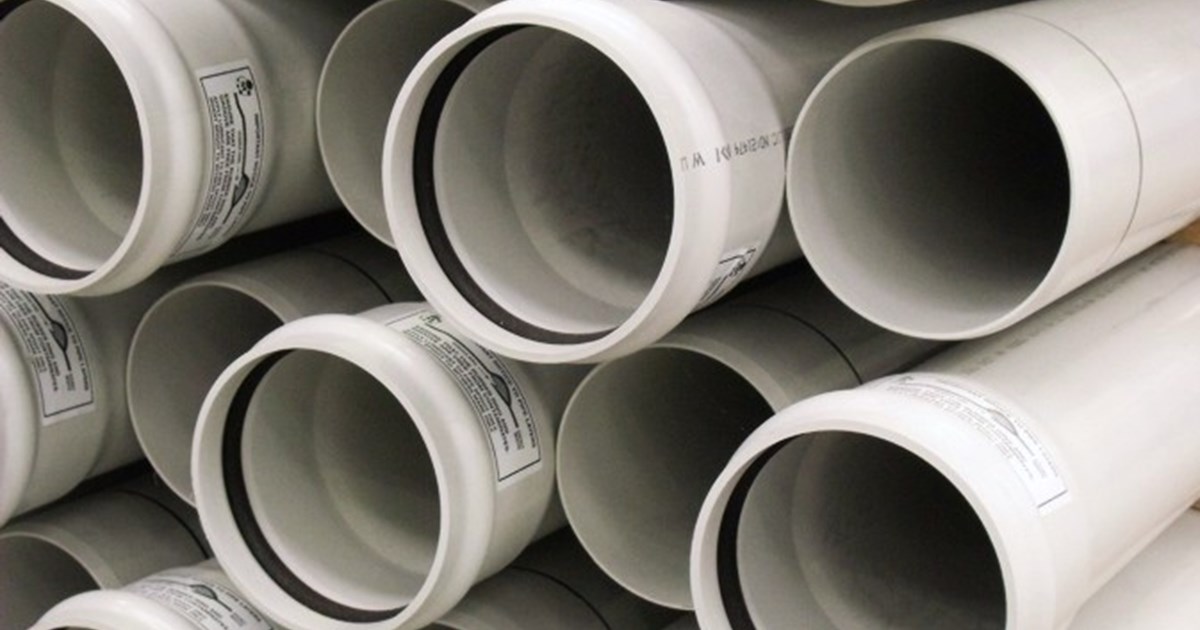

PVC-M Pressure Pipe S1

PVC-M Pressure Pipe S1

This pressure pipe is manufactured to Series 1 diameters and features high impact resistance with high toughness, ductility and corrosion resistance.

Suitable for potable water, non-potable water, recycled water and pressure sewer systems

Standard

AS/NZS 4765

Size range

DN 100 - 300

Material

PVC-M (MRS 24.5MPa)

Pressures

PN6, PN9, PN12, PN15, PN18

Temp Range

0 to 50 deg C

Lengths

6m Spigot-Socket

Jointing

Rubber Ring Joint

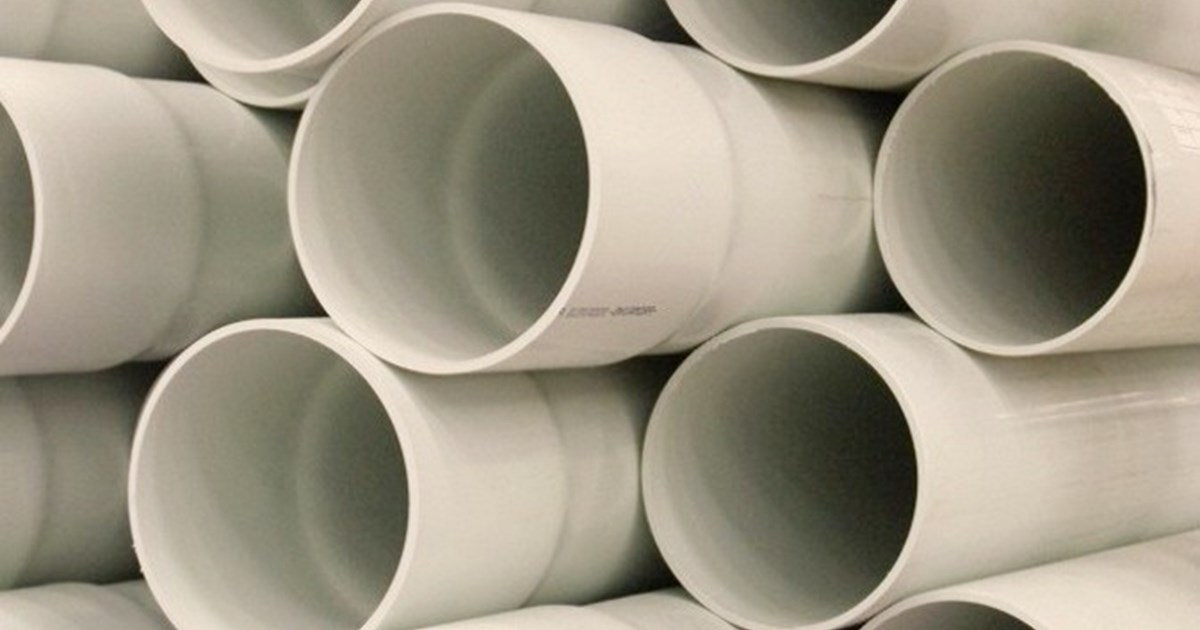

PVC-U Pressure Pipe S1

PVC-U Pressure Pipe S1

PVC-U pipes are manufactured to Series 1 diameters and have been used extensively for pressure applications for many years due to its many features such as material stability, corrosion resistance, high strength to weight ratio and ease of installation.

Suitable for potable water, irrigation and industrial process pipe systems and effluent waste pipelines.

Standard

AS/NZS 1477

Size range

DN 20 - 300

Pressures

PN6, PN9, PN12 & PN18

Temp Range

0 to 50 deg C

Lengths

6m Spigot-Socket

Jointing

Solvent Cement Joint
PVC-U Pressure Fittings

PVC-U Pressure Fittings

These fittings are designed as a solvent welded system and manufactured to suit AS/NZS 1477 Series 1 diameter PVC-U pressure pipes of all pressure classes.

Available in a wide range of fittings and are suitable for use in potable water, irrigation and industrial process pipe systems and effluent waste pipelines.

Standard

AS/NZS 1477

Size range

DN 20 - 300

Pressures

PN18 (Fittings <=DN150)
PN10 (Fittings > DN150)

Temp Range

0 to 50 deg C

Jointing

Solvent Cement Joint (SCJ), Threaded (BSP) or Flanged

Technical Documents

PVC Pipe Jointing

Joining materials and instructions for solvent weld and rubber ring jointing of PVC pipe systems.

SOLVENT WELD JOINTS

PVC-U & PVC-M pipes and fittings
AS/NZS 3879
Priming Fluid (Red)
Solvent Cements:
> Type N - for non-pressure interference fit joints
> Type P - for pressure interference fit joints
> Type G - gap filler for parallel/clearance fit joints
.

RUBBER RING JOINTS

PVC-U, PVC-M, PVC-O pipe and fittings
ATS 5200.015 and AS/NZS 4020
BK Type - anti-bacterial lubrication for potable water systems
Std Type - standard lubrication for non-potable water systems
.
