PVC DWV Sewer

Our range of PVC DWV pipes and fittings are manufactured to AS/NZS 1260 and are suitable for drain, waste and vent applications. The system is suitable for below ground and above ground applications and is supplied with either a rubber ring or solvent weld jointing system.

National plumbing standards, WSAA codes and local authority standards determine the product required for each application.

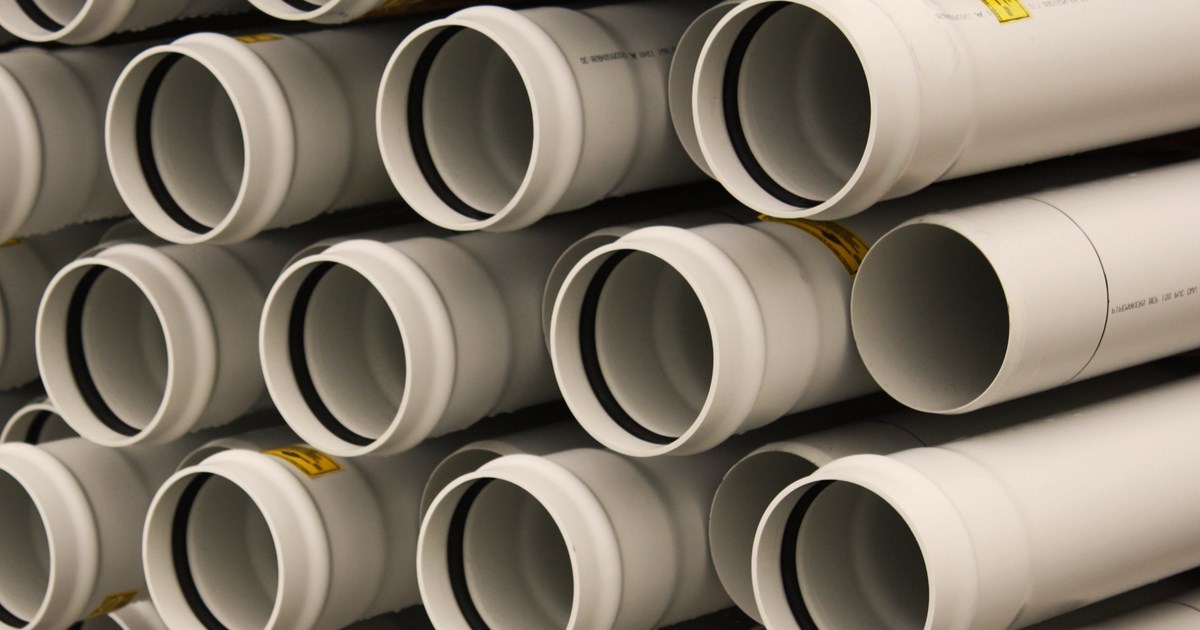

PVC DWV Pipe

PVC DWV Pipe

DWV pipes are designed for non-pressure waste water and sewer applications and are supplied with either a rubber ring or solvent weld joint system.

Pipes up to DN80 are classified by minimum wall thickness and pipes DN100 and greater are classified by stiffness (SN rating).

SN4 and SN6 are generally used for plumbing and domestic applications, whereas the higher SN8 and SN10 rated pipes are used for municipal drainage and sewerage reticulation applications. The requirements of national codes and local authority standards will determine the pipe class and jointing system to be used.

Standard

AS/NZS 1260

Size range

DN 100 - DN 300

Stiffness

SN4, SN6, SN8 & SN10

Lengths

3m, 6m Spigot-Socket

Jointing

Rubber Ring Joint or Solvent Weld Joint

Technical Documents

DWV Solvent Weld Fittings

DWV Solvent Weld Fittings

DWV Solvent Weld fittings provide a rigid jointing system and are suitable for above ground and below ground drain, waste and vent applications.

Standard

AS/NZS 1260

Size range

DN 100 - DN 375

Jointing

Solvent Weld Joint (AS/NZS 2032)
Refer PVC Pipe Jointing Data Sheet

Technical Documents

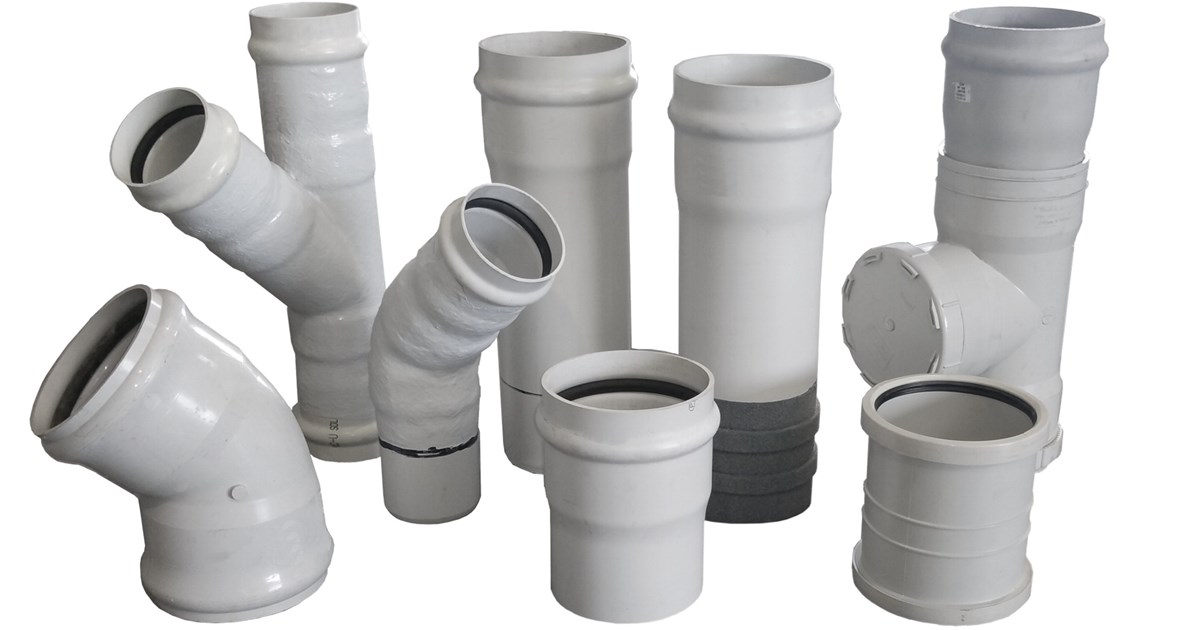

DWV Rubber Ring Fittings

DWV Rubber Ring Fittings

DWV Rubber Ring fittings with a flexible rubber ring are designed to accommodate thermal movement or ground movement and are suitable for above ground and below ground drain, waste and vent applications.

Standard

AS/NZS 1260, SEQ Code

Size range

DN 100 - DN 375

Types

Std – Unwrapped
FG – Fibreglass Wrap Reinforcement

Jointing

Rubber Ring Joint (AS/NZS 2032)
Refer PVC Pipe Jointing Data Sheet

Technical Documents

DWV Pipe Saddles

DWV Pipe Saddles

DWV Pipe saddles are designed to provide a permanent sewer branch connection to existing sewer pipelines.

We offer a range of PVC Saddles that can be glued and strapped to the pipe, as well as a range of wrap around SS Clamps OB junctions with an elastomeric seal pipe connection.

PVC Saddle

Standard: AS/NZS1260
Size Range: DN 100 – 375
Branches: 45 deg Spigot SWJ
90 deg Socket SWJ
.

SS OB Junction

Standard: SS Band conforms to AS4181
Size Range: DN 100 – 375
Branches: DN 100 Socket SWJ
DN 150 Socket SWJ
.

Technical Documents

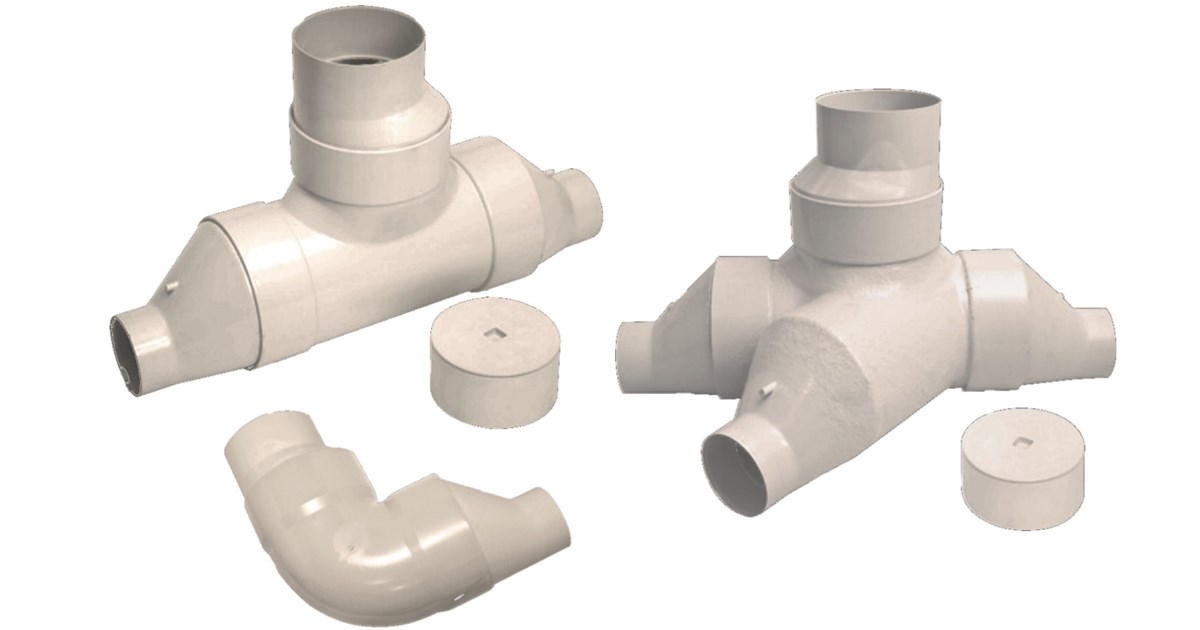

DWV Maintenance Shafts

DWV Maintenance Shafts

We offer a range of Maintenance Shafts that have been appraised by WSAA and approved for use by the major water authorities.

Where approved, maintenance shafts are quick and easy to install making them an ideal replacement for traditional manholes.

Maintenance shafts can be configured with up to 3 inlet junctions at varying angles and inverts; and can include riser pipe junctions for larger drop connections.

Standard

WSAA Appraised

Pipe Sizes

DN 100, 150, 225, 300 & 375

Riser Sizes

DN 225, 300 & 600 M&F or F&F

MS Base

2 way (1 Inlet) M&F or F&F
3 way (2 Inlets) M&F or F&F
4 way (3 Inlets) M&F or F&F

Jointing

Solvent Weld or Rubber Ring Jointing

Fabrication

Fabricated to suit design requirements
100% watertight & tested prior to delivery

Technical Documents

PVC Pipe Jointing

Joining materials and instructions for solvent weld and rubber ring jointing of PVC pipe systems.

SOLVENT WELD JOINTS

PVC-U & PVC-M pipes and fittings
AS/NZS 3879
Priming Fluid (Red)
Solvent Cements:
> Type N - for non-pressure interference fit joints
> Type P - for pressure interference fit joints
> Type G - gap filler for parallel/clearance fit joints
.

RUBBER RING JOINTS

PVC-U, PVC-M, PVC-O pipe and fittings
ATS 5200.015 and AS/NZS 4020
BK Type - anti-bacterial lubrication for potable water systems
Std Type - standard lubrication for non-potable water systems
.
