Dismantling Joints

Couplings & Clamps

Dismantling Joints

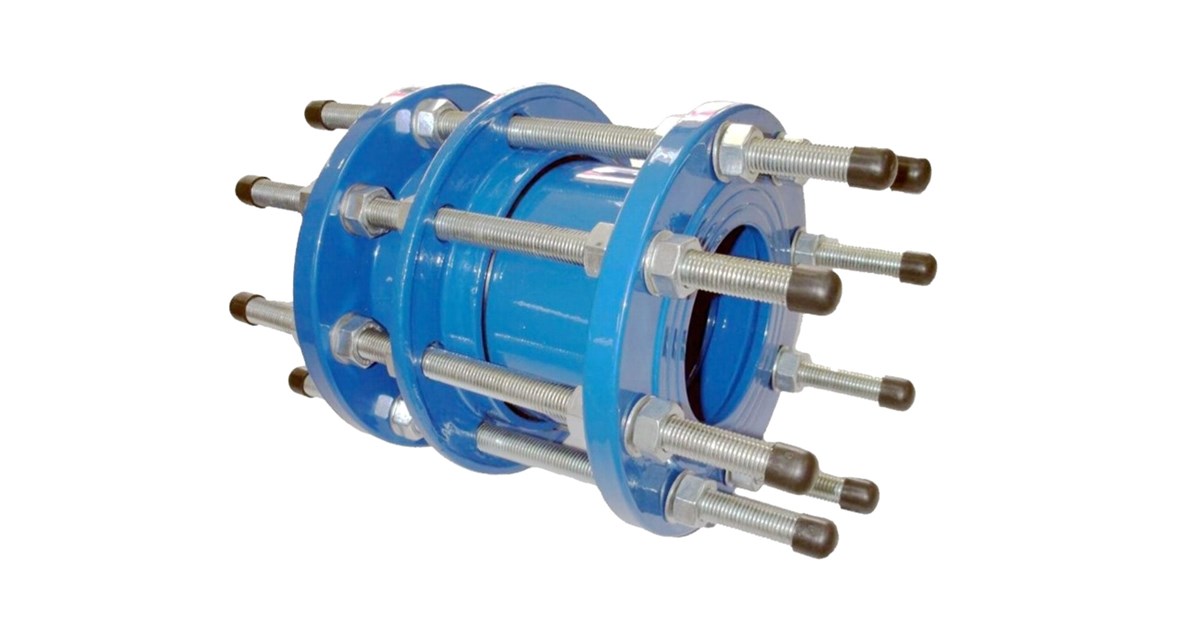

Dismantling joints are designed to allow the removal of valves and equipment in a pipeline for maintenance or replacement. These joints are suitable for use in potable water; non-potable water and wastewater pipelines.

The dismantling joints are available in un-restrained and fully restrained configurations. Full length tie rods are added to provide the restraint.

Size Range

DN 80 - DN 2000

Pressure

PN16

Materials

Ductile Iron (fusion coated AS/NZS 4158),
316 SS Fasteners and EPDM Seals

Temp Range

-10 to 80 deg C

Flange Drilling

AS 4087 PN16

Features

  1. AS/NZS 4020 approved FBE coating
  2. Ductile iron body
  3. Teflon coated stainless steel tie rods
  4. Fully restrained and unrestrained configurations
  5. Longitudinal 25mm adjustment
