Couplings & Clamps

Uni-Gib Couplings

Uni-Gib Couplings

The CIVILPIPES UNI-GIB Coupling is an unrestrained mechanical coupling that is suitable for use in potable water; non-potable water and wastewater pipelines.

The couplings can join most pipe materials and each size is designed to fit a range of outside diameters, and therefore ideal for joining PVC-O, PVC-M, PVC-U, GRP, DI, AC, and Steel pipelines.

Standard

AS/NZS 4998

Size Range

DN 80 - DN 600

Pressure

PN16 (Water)

Materials

Ductile Iron (fusion coated AS/NZS 4158),
316 Stainless Steel,
EPDM seals

Temp Range

Max 60 deg C (Water)

Jointing

Un-restrained mechanical joint

Deflection

1.5 – 3 deg each end (Refer Data Sheet)

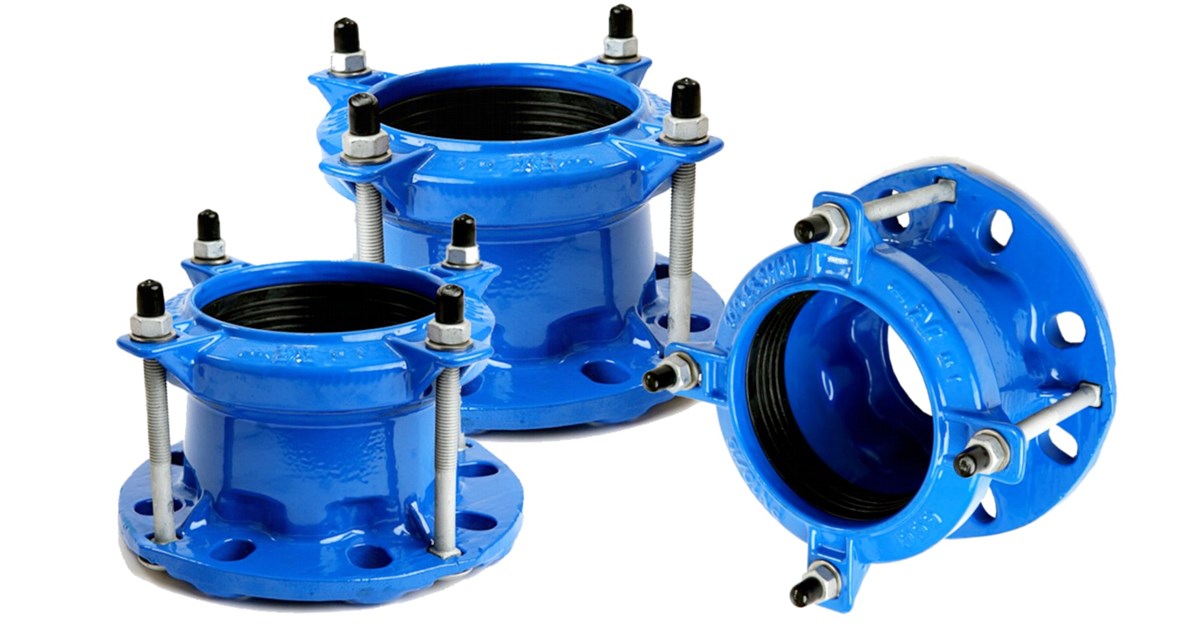

Flange Adaptor Couplings

Flange Adaptor Couplings

Flange adaptor couplings provide an effective means for inserting a flange into a pipeline for connection to another flanged component or valve. These adaptors are suitable for use in potable water; non-potable water and wastewater pipelines.

The un-restrained mechanical coupling end can connect to most pipe materials and each size is designed to fit a range of outside diameters. The flange end is drilled to AS 4087 PN16 as standard and other drilling patterns are available on

Standard

AS/NZS 4998

Size Range

DN 80 - DN 600

Pressure

PN16 (Water)

Materials

Ductile Iron (fusion coated AS/NZS 4158),
316 Stainless Steel,
EPDM/ Nitrile seal options

Temp Range

Max 60 deg C (Water)

Jointing

Un-restrained mechanical joint/ flanged joint

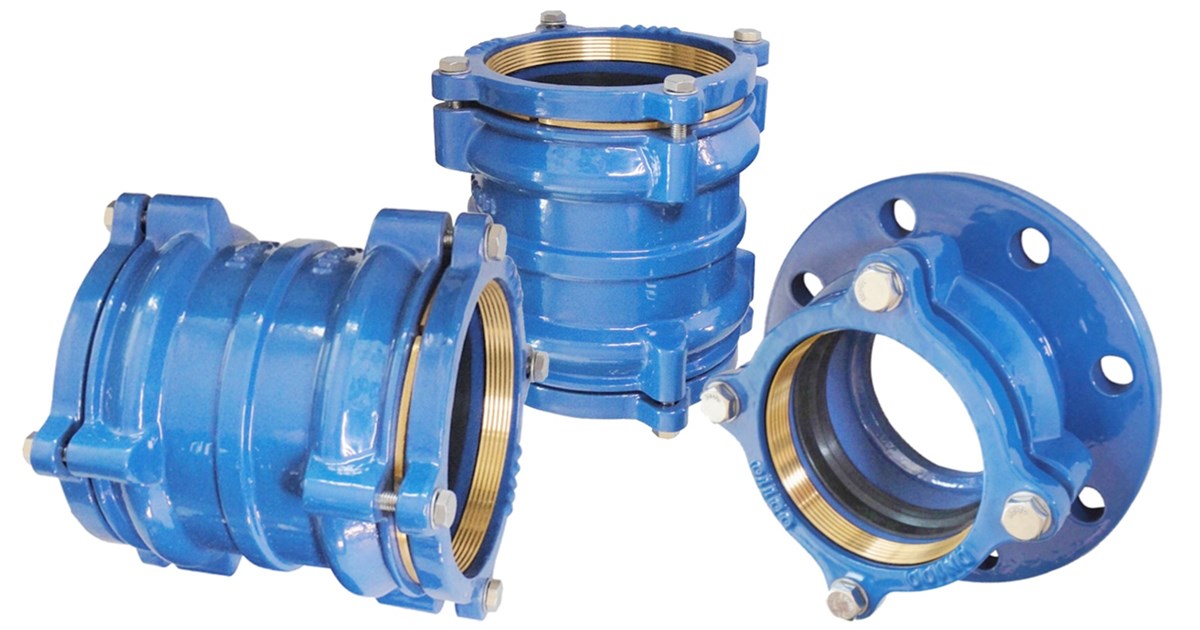

PE Restraint Couplings

PE Restraint Couplings

CIVILPIPES XCEL PE Restraint Couplings are designed to provide a full restraint connection for polyethylene pressure pipes and are suitable for use in potable water; non-potable water and wastewater pipelines.

The couplings have a grip ring that, when fully tightened, secures the pipe joint to provide a full restraint connection.

Standard

EN 12842

Size range

DN 63 - DN 315

Pressure

PN16 (Water)

Temp Range

Max 60 deg C (Water)

Jointing

Mechanical Restraint

Deflection

1.5 deg max

Flanges

EN 1092-2 dimensions
AS 4087 Fig B5 drill pattern

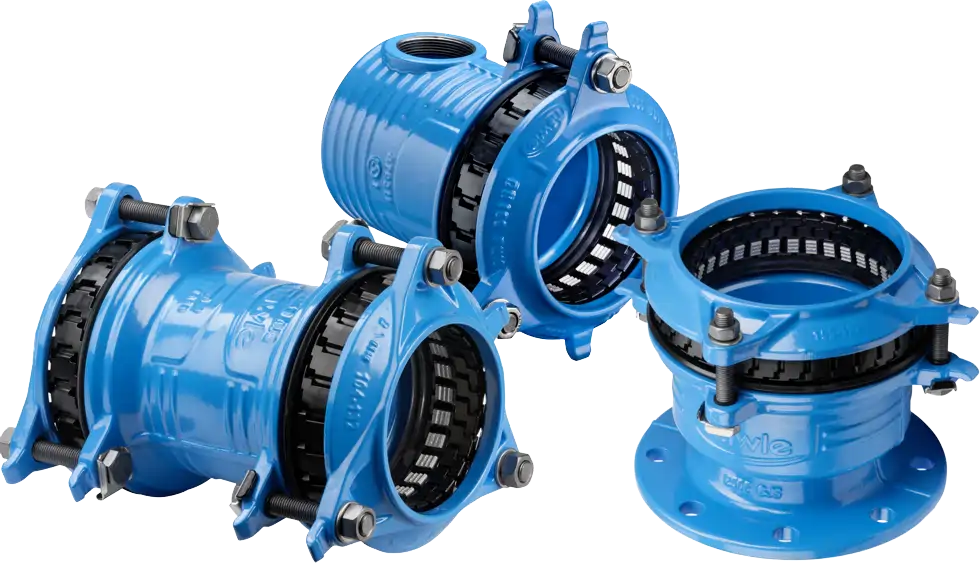

Synoflex Restraint Couplings

Synoflex Restraint Couplings

Synoflex Restraint Couplings are suitable for use in potable water; non-potable water and wastewater pipelines.

The coupling has full restraint capability and can join all rigid and flexible pipe materials.

Suitable for below ground and above ground applications.

Size range

DN 40 - DN 400

Pressures

PN16 (DN 50 - DN 300)
PN10 (DN 350 - DN 400)

Temp range

-5 to 50 deg C (Water)

Jointing

Full Restraint mechanical joint

Deflection

4 deg Max per end connection
SS Repair Clamps

SS Repair Clamps

SS Repair Clamps provide a permanent repair for most damaged or leaking pipes, and they also provide a permanent solution for offtake connections to existing pipes.

The materials used are suitable for use in potable water, non-potable water and sewer applications.

Repair Clamps are available in a wide range of diameters, lengths and configurations (1, 2 & 3 part); and each can be fabricated with a BSP, Flanged or DWV offtake as required.

Standard

AS 4181

Size Range

DN 15 - DN 1200

Pressure

PN16 unless noted otherwise (Clamps up to 690 OD)

Material

316 SS Band, offtakes and fasteners
NBR Seal (AS 1646, AS/NZS 4020)

Temp Range

Max 60 deg C (Water)

Off Takes

BSP Sockets, AS4087 Flanges

Applications

Suitable for water and sewer applications.
Designed for permanent pipeline repair and offtakes,
Not suitable for joining pipes,
Clamps DO NOT provide any axial restraint

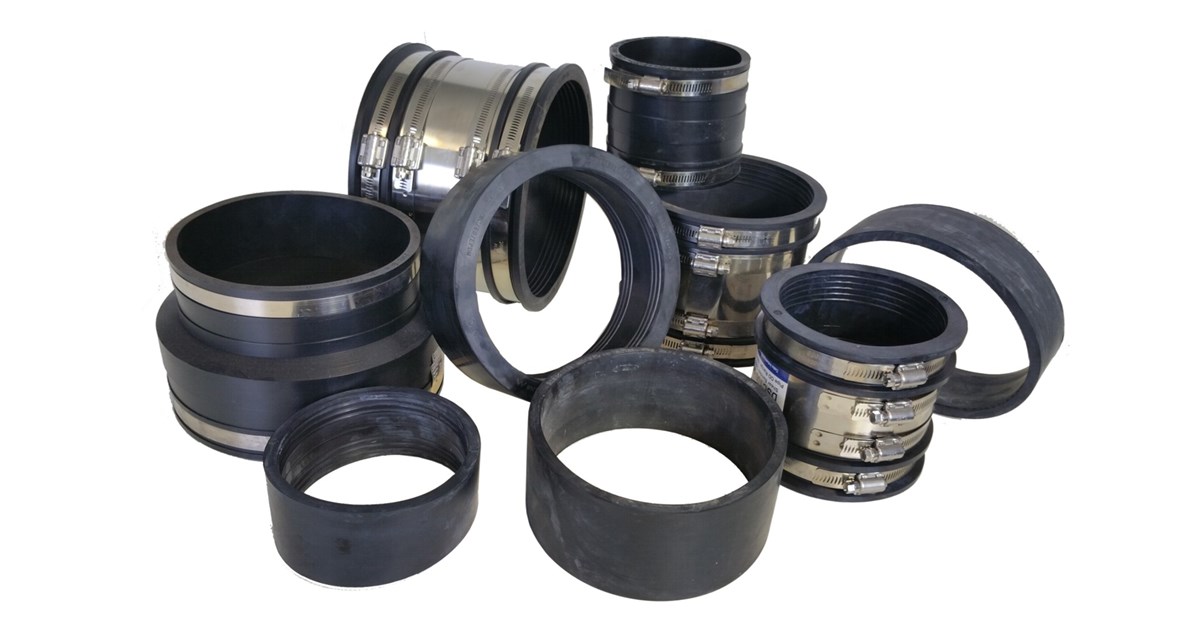

Flexible Couplings

Flexible Couplings

Flexi couplings are designed to join and repair low pressure water and wastewater pipelines.

The Flexi Shear Band coupling has an added SS band fitted and additional joint strength and support

Each coupling can join a range of pipe materials and sizes, and when the pipe outside diameters differ by more than 12mm, a Flexi Bush can be added to ensure a positive joint.

Standard

AS/NZS 4327 Type B

Size Range

DN 50 - DN 600

Pressure

PN 2.5

Materials

EPDM Rubber AS681.1 Type B
Stainless Steel Gr316 AS/NZS 4327

Temp Range

Max 80 deg C

Shear Band

The stainless steel shear band strengthens the joint and maintains proper pipe alignment.

Technical Documents

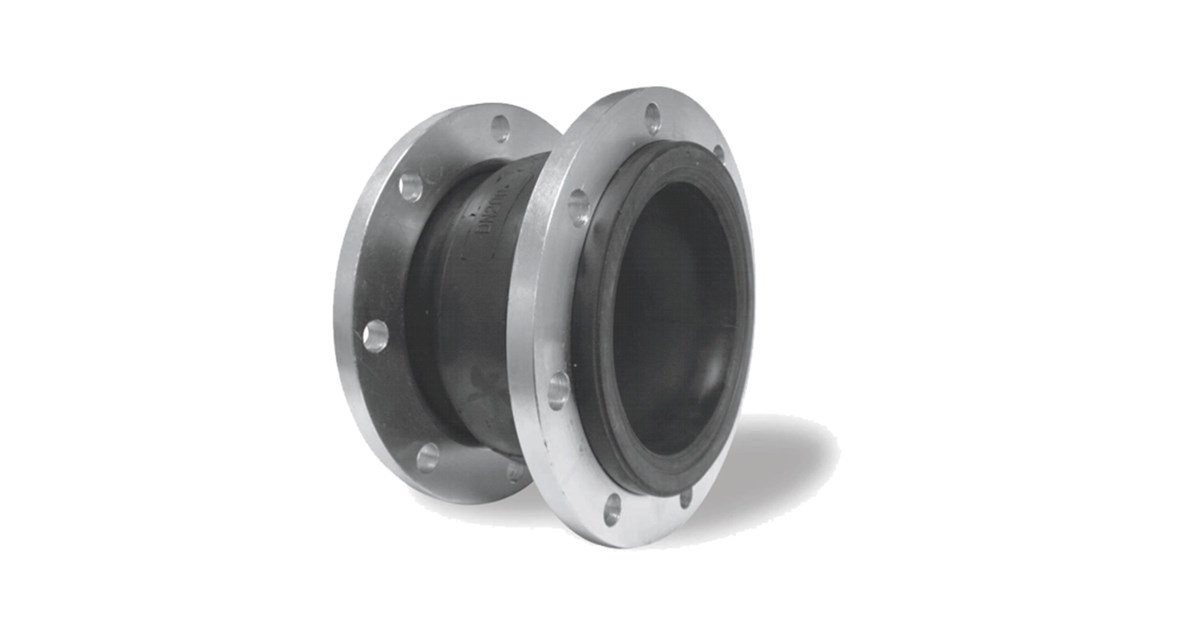

Expansion Couplings

Expansion Couplings

Spherical rubber expansion joints are designed to allow controlled movement within a pipeline, acoustic damping and have a high resistance to work. These couplings are suitable for use in potable water, non-potable water and sewer applications.

The elastomeric tube can be supplied in a range of application specific materials such as EPDM, Neoprene, NBR, and Viton.

Size Range

DN 32 - DN 600

Pressure

PN16, PN25
(PN40 available on request)

Vacuum

400 - 750mm Hg

Materials

Elastomeric material varies by application
Flanges – Zinc coated steel (SS option)
.

Temp Range

-20 to +200 deg C
(depending on tube material)
.

Flange Drilling

AS 4087 PN16, AS2129 T/E,
DIN/AS2129 combination
Dismantling Joints

Dismantling Joints

Dismantling joints are designed to allow the removal of valves and equipment in a pipeline for maintenance or replacement. These joints are suitable for use in potable water; non-potable water and wastewater pipelines.

The dismantling joints are available in un-restrained and fully restrained configurations. Full length tie rods are added to provide the restraint.

Size Range

DN 80 - DN 2000

Pressure

PN16

Materials

Ductile Iron (fusion coated AS/NZS 4158),
316 SS Fasteners and EPDM Seals

Temp Range

-10 to 80 deg C

Flange Drilling

AS 4087 PN16
