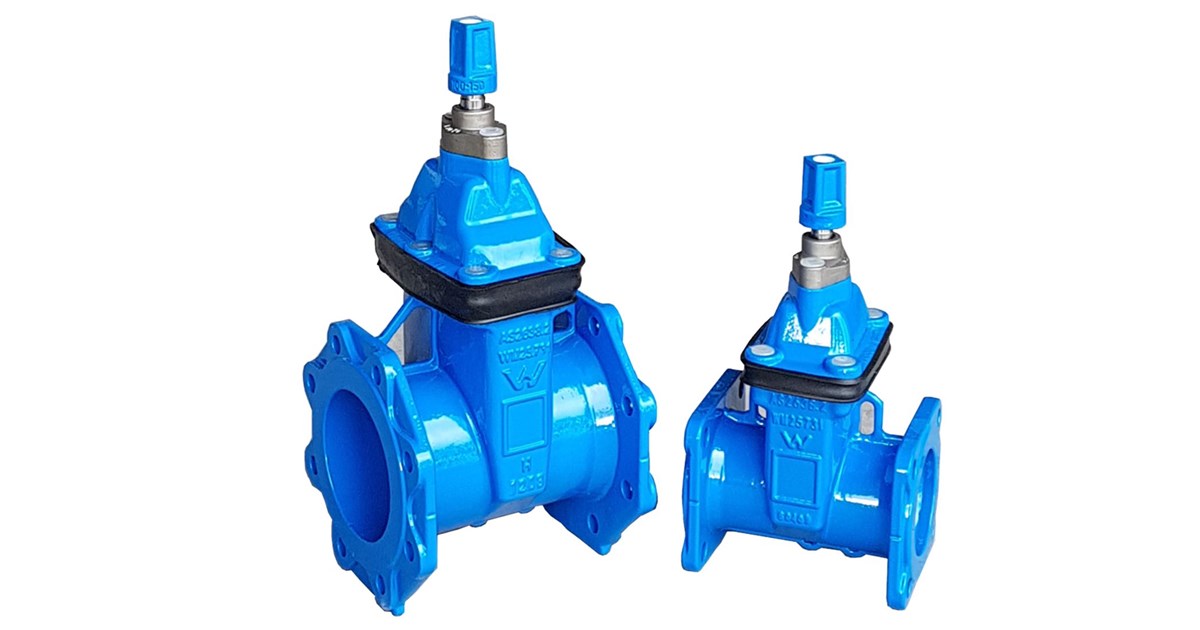

VGFH - Flange PN25

Gate Valves - Resilient Seat

VGFH - Flange PN25

Standard

AS 2638.2

Size Range

DN 80 – DN 200

Pressures

Operating Pressure 2500 kPa (PN 25)
Test Pressure – Seal 2750 kPa
Test Pressure – Body 3750 kPa

Temperature

Max 80 deg C

Coating

Fusion Bonded coating to AS/NZS 4158

End connections

Flange (AS 2129 Table F)

Features

  1. High strength and corrosion resistant materials
  2. EPDM encapsulated ductile iron wedge ensures effective sealing
  3. Full bore design eliminates blockages
  4. Anti-friction components for lower operating torques
