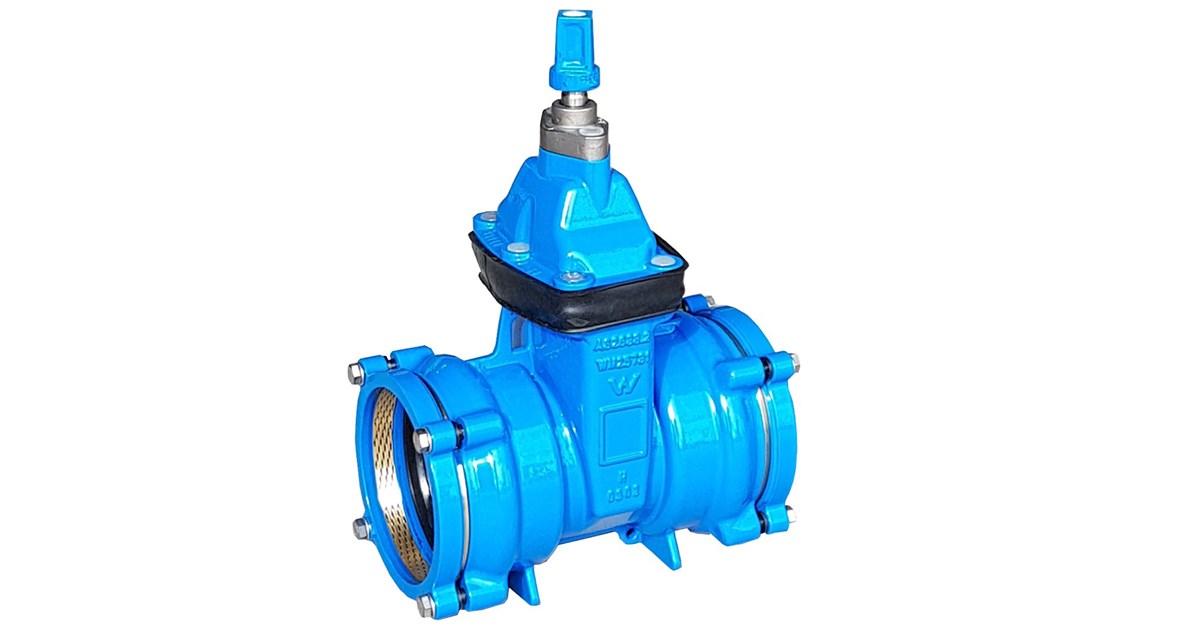

VGG - PE Restraint PN16

Gate Valves - Resilient Seat

VGG - PE Restraint PN16

Standard

AS 2638.2

Size Range

OD 90 – OD 280

Pressures

Operating Pressure 1600 kPa (PN 16)
Test Pressure – Seal 1760 kPa
Test Pressure – Body 2400 kPa

Temperature

Max 80 deg C

Coating

Fusion Bonded coating to AS/NZS 4158

End connections

Mechanical Restraint for PE

Features

  1. High strength and corrosion resistant materials
  2. EPDM encapsulated ductile iron wedge ensures effective sealing
  3. Full bore design eliminates blockages
  4. Anti-friction components for lower operating torques
